Description
CoilCable.com – Fiber Optic Cables

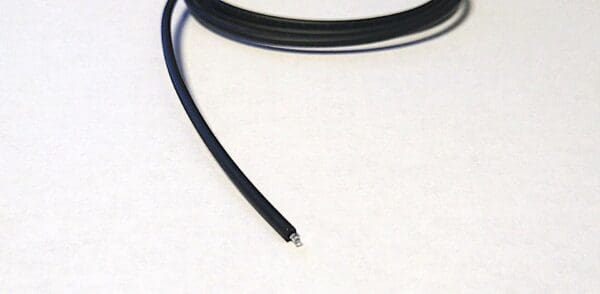

FiOps039-PMR – Black
Sold By The Foot or Continuous Bulk Spool
Manufacturer : Industrial Fiber Optics
Series : ESKA™
Style : Standard
Type : Multimode, Simplex
Core Diameter : 980µm (0.0385827″ in. Nom. / 0.98mm)
Cladding Diameter : 1000µm (0.0393701″ in. Nom / 1mm)
Flammability Rating (Physical Properties) : Riser
Armor or Non-Armor : Non-Armored
Cladding Material : Fluorinated Polymer
Tensile Strength : lbs. ( kg)
Jacket Color : Black
Ratings : N/A
Number of Fibers : 1
Core Material : Polymethyl – Methacrylate Resin
Operating Temperature : -67°F ~ 185°F (-55°C ~ 85°C)
Bend Radius : 984.3µm (0.984252″ in. Nom. 25mm)
Environment : Storage Temperature (No Physical Deterioration
[ in a Dry Atmosphere ]) : -67°F ~ 185°F (-55°C ~ 85°C)
Fiber-optic cable is made up of a few to hundreds of optical fibers in it’s plastic sheath casing. Also known as optical cables or optical fiber cables, these cables have the ability to transmit data signals in the form of light and travel hundreds of miles significantly faster than those used in traditional electrical cables and power lines. Fiber-optic cables are used for high-performance data communication over both short and long distances – primarily to provide internet, computer network, telephone, and cable television services. Fiber’s design is simply better for data transmission over long distances than cable’s electrical signals. Fiber cables can also carry much more bandwidth than similarly sized copper cables and are immune to interference because there are no electrical signals in use.
CoilCable.com Offers Various Styles and Types of Fiber Optic Cables for many types of uses.
Email us at [email protected] for additional information and specifications
