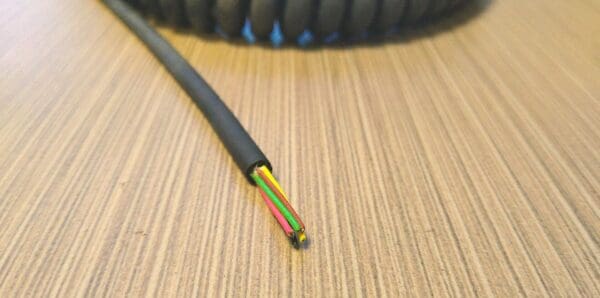

EC286 - Electronic Coiled Cord 28 Gauge with 6 Conductors - No Shield on a wooden table.
EC286 - Electronic Coiled Cord 28 Gauge with 6 Conductors - No Shield on a wooden table.
EC286 - Electronic Coiled Cord 28 Gauge with 6 Conductors - No Shield series shielded cable.
The anatomy of EC286 - Electronic Coiled Cord 28 Gauge with 6 Conductors - No Shield.
EC286 - Electronic Coiled Cord 28 Gauge with 6 Conductors - No Shield is commonly used in military, medical, industrial, and audio applications.
EC286 - Electronic Coiled Cord 28 Gauge with 6 Conductors - No Shield coil cable.

EC286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – No Shield

$19.40 – $79.35

SKU: EC286- Categories: , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

CoilCable.com offers miniature to large gauge size retractile cords in standard and custom cable configuration.

Prototypes and off the shelf coils.

ELECTRONIC COIL CABLE (EC SERIES)

PART NO. EC286-XX 28 AWG 6 CONDUCTORS COLOR CODE: BLACK, WHITE, RED, GREEN, YELLOW, ORANGE

*COLORS SUBJECT TO CHANGE DEPENDING ON AVAILABILITY

NON-SHIELDED SCI-FLEX© JACKET -40C / + 90C

High Flex Tinned Copper

Insulation: Polypropylene

AMP (at 100v) Rating – 1/2

A: 6.0 MIN

B: 0.562″ NOM.

C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)

D: 0.180″ NOM.

E: 6.0 MIN (please consult factory for custom length)

Additional information

Select Option

EC286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – No Shield 5 – 6RX15-315X6R 220 45/45 C12, EC286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – No Shield 10 – 6RX15-315X6R 220 45/45 C24, EC286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – No Shield 15 – 6RX15-315X6R 220 45/45 C36, EC286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – No Shield 20 – 6RX15-315X6R 220 45/45 C48, EC286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – No Shield 25 – 6RX15-315X6R 220 45/45 C60, EC286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – No Shield 30 – 6RX15-315X6R 220 45/45 C72
