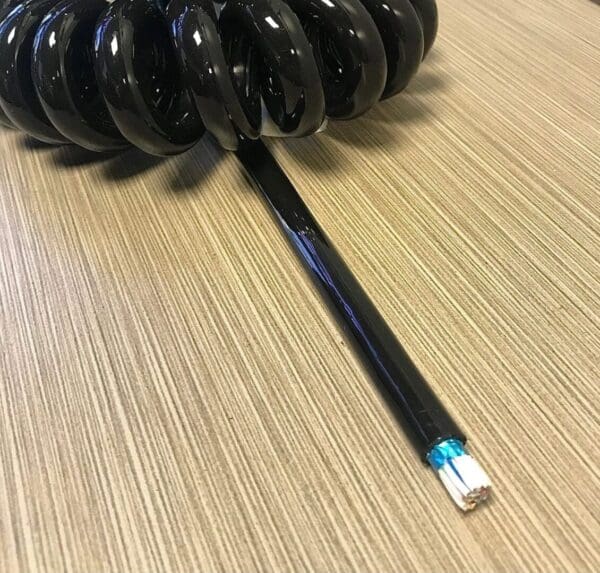

ECS2217 – Electronic Coiled Cord 22 Gauge with 17 Conductors – Aluminum Shielded

$44.35 – $154.82

SKU: ECS2217 Categories: , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

SHIELDED ELECTRONIC COIL CABLE (ECS SERIES)

SHIELDED -OVER-ALL ALUMINUM / MYLAR WRAP + DRAIN WIRE EMI / RFI INTERFERENCE PROTECTION

PART NO. ECS2217-XX 22 AWG 17 CONDUCTORS COLOR CODE: CALL US AT 562.777.VOLT (8658) FOR MORE INFORMATION

*COLORS SUBJECT TO CHANGE DEPENDING ON AVAILABILITY

SHIELDED SCI-FLEX© JACKET -40C / + 90C

AVAILABLE IN GLOSS BLACK Jacket Options

High Flex Tinned Copper

Insulation: Polypropylene

Shield: Tinned Copper Spiral 85-90% coverage

AMP (at 100v) Rating – 1/2

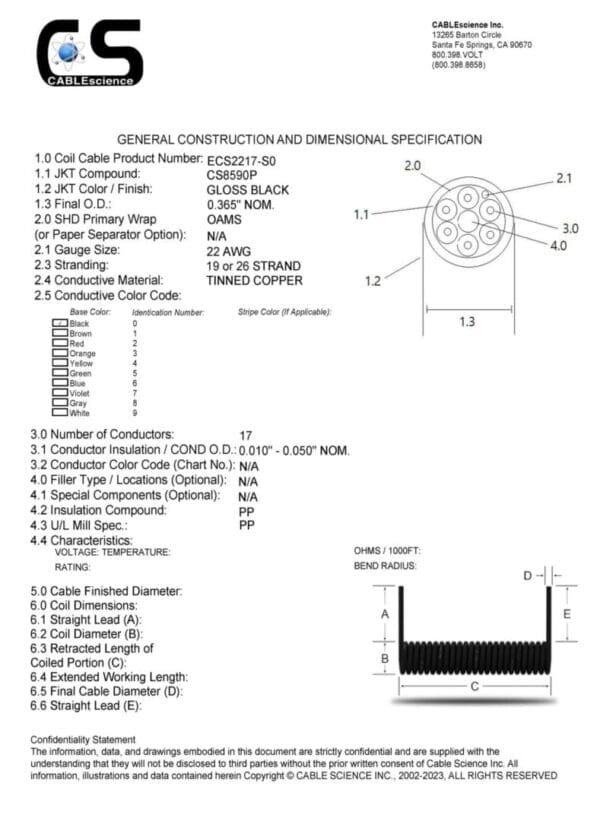

A: 6.0 MIN

B: 1.300″ NOM.

C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)

D: 0.365″ NOM.

E: 6.0 MIN (consult factory for custom length)

Final Cable OD: 0.365” nominal

CABLEscience offers miniature to large gauge size retractile cords in standard and custom cable configuration.

Prototypes and off the shelf coils.



Additional information

Select Option

ECS2217 – Electronic Coiled Cord 22 Gauge with 17 Conductors – Aluminum Shielded 5 – 6RX15-700X6R 220 45/30 C12, ECS2217 – Electronic Coiled Cord 22 Gauge with 17 Conductors – Aluminum Shielded 10 – 6RX29-700X6R 220 45/30 C24, ECS2217 – Electronic Coiled Cord 22 Gauge with 17 Conductors – Aluminum Shielded 15 – 6RX44-700X6R 220 45/30 C36, ECS2217 – Electronic Coiled Cord 22 Gauge with 17 Conductors – Aluminum Shielded 20 – 6RX59-700X6R 220 45/30 C48, ECS2217 – Electronic Coiled Cord 22 Gauge with 17 Conductors – Aluminum Shielded 25 – 6RX72-700X6R 220 45/30 C60, ECS2217 – Electronic Coiled Cord 22 Gauge with 17 Conductors – Aluminum Shielded 30 – 6RX86-700X6R 220 45/30 C72
