Description

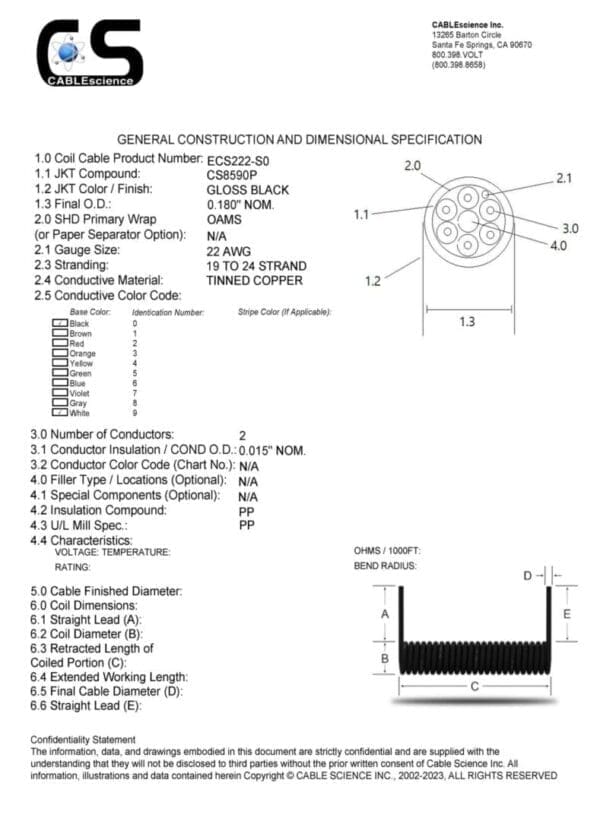

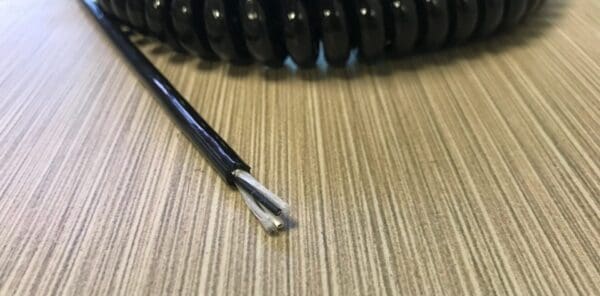

SHIELDED ELECTRONIC COIL CABLE (ECS SERIES)

SHIELDED -OVER-ALL ALUMINUM / MYLAR WRAP + DRAIN WIRE EMI / RFI INTERFERENCE PROTECTION

PART NO. ECS222-XX 22 AWG 2 CONDUCTORS Black, White

*COLORS SUBJECT TO CHANGE DEPENDING ON AVAILABILITY

SHIELDED SCI-FLEX© JACKET -40C / + 90C

AVAILABLE IN GLOSS BLACK Jacket Options

High Flex Tinned Copper

Insulation: Polypropylene

Shield: Tinned Copper Spiral 85-90% coverage

AMP (at 100v) Rating – 1/2

A: 6.0 MIN

B: 0.700″ NOM.

C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)

D: 0.180″ NOM.

E: 6.0 MIN (consult factory for custom length)

Final Cable OD: 0.180” nominal

CABLEscience offers miniature to large gauge size retractile cords in standard and custom cable configuration.

Prototypes and off the shelf coils.
