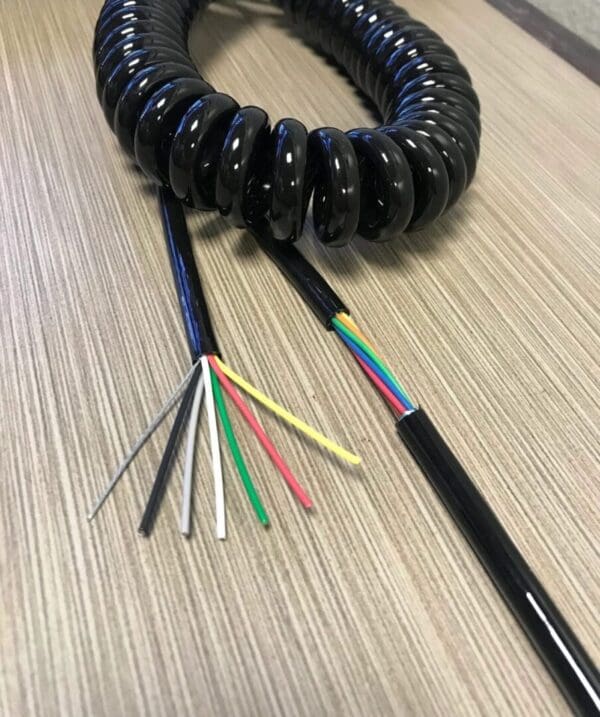

A black ECS226 - Electronic Coiled Cord 22 Gauge with 6 Conductors - Aluminum Shielded cable with different colored wires.
A shielded logo on a green background.

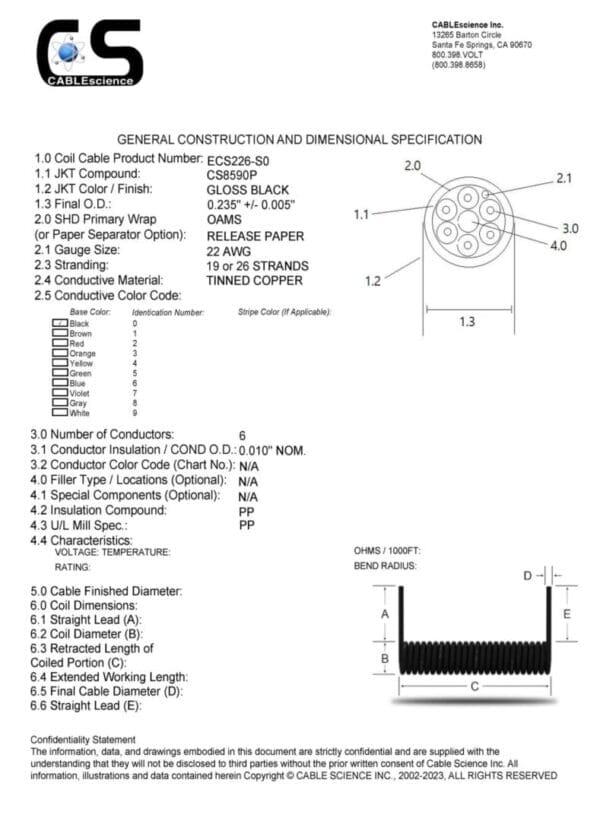

A diagram showing the wiring diagram for the ECS226 - Electronic Coiled Cord 22 Gauge with 6 Conductors - Aluminum Shielded.
Sc-flex coil cable should be replaced with PCE164 16 AWG 4 COND. 300V COIL CABLE - MAXIMUM DUTY in the sentence.
Ecs series shielded coaxial cable.
Electronic coil cables military medical industrial audio.
The anatomy of custom cable.

ECS226 – Electronic Coiled Cord 22 Gauge with 6 Conductors – Aluminum Shielded

$28.73 – $106.54

SKU: ECS226 Categories: , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

SHIELDED ELECTRONIC COIL CABLE (ECS SERIES)

SHIELDED -OVER-ALL ALUMINUM / MYLAR WRAP + DRAIN WIRE EMI / RFI INTERFERENCE PROTECTION

PART NO. ECS226-XX 22 AWG 6 CONDUCTORS COLOR CODE: BLACK, WHITE, RED, GREEN, YELLOW, GRAY

*COLORS SUBJECT TO CHANGE DEPENDING ON AVAILABILITY

SHIELDED SCI-FLEX© JACKET -40C / + 90C

High Flex Tinned Copper

Insulation: Polypropylene

Shield: Tinned Copper Spiral 85-90% coverage

AVAILABLE IN GLOSS BLACK Jacket Options

AMP (at 100v) Rating – 1/2

A: 6.0 MIN

B: 1.0″ NOM.

C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)

D: 0.260″ NOM.

E: 6.0 MIN (consult factory for custom length)

Final Cable OD: 0.260” nominal

CABLEscience offers miniature to large gauge size retractile cords in standard and custom cable configuration.

Prototypes and off the shelf coils.



Additional information

Select Option

ECS226 – Electronic Coiled Cord 22 Gauge with 6 Conductors – Aluminum Shielded 5 – 6RX15-375X6R 220 45/30 C12, ECS226 – Electronic Coiled Cord 22 Gauge with 6 Conductors – Aluminum Shielded 10 – 6RX29-375X6R 220 45/30 C24, ECS226 – Electronic Coiled Cord 22 Gauge with 6 Conductors – Aluminum Shielded 15 – 6RX44-375X6R 220 45/30 C36, ECS226 – Electronic Coiled Cord 22 Gauge with 6 Conductors – Aluminum Shielded 20 – 6RX59-375X6R 220 45/30 C48, ECS226 – Electronic Coiled Cord 22 Gauge with 6 Conductors – Aluminum Shielded 25 – 6RX72-375X6R 220 45/30 C60, ECS226 – Electronic Coiled Cord 22 Gauge with 6 Conductors – Aluminum Shielded 30 – 6RX86-375X6R 220 45/30 C72

Reviews

There are no reviews yet.

Be the first to review “ECS226 – Electronic Coiled Cord 22 Gauge with 6 Conductors – Aluminum Shielded”
