CABLEscience offers miniature to large gauge size retractile cords in standard and custom cable configuration. Prototypes and off the shelf coils.

ECS227 22 AWG 7 Conductors

High Flex Tinned Copper Insulation: Polypropylene Shield: Tinned Copper Spiral 85-90% coverage Jacket: SCIflex Gloss Black

-40C + 90C Final Cable OD: 0.270” nominal

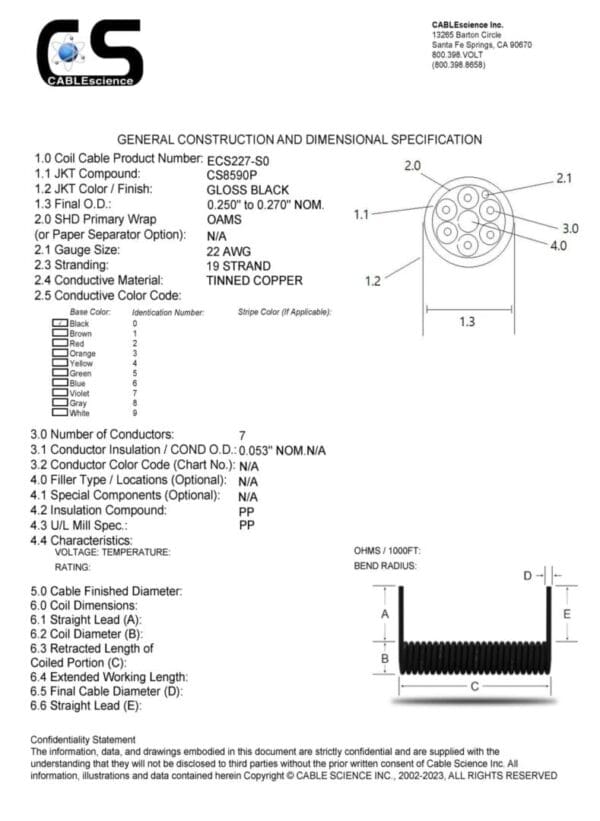

SHIELDED ELECTRONIC COIL CABLE (ECS SERIES) PART NO. ECS227-XX 22 AWG 7 CONDUCTORS COLOR CODE: BLACK, WHITE, RED, GREEN, YELLOW, GRAY SHIELDED -OVER-ALL ALUMINUM / MYLAR WRAP + DRAIN WIRE EMI / RFI INTERFERENCE PROTECTION SCI-FLEX JACKET -40C / + 90C BLACK

A: 6.0 MIN

B: 1.10 NOM.

C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)

D: 0.270 NOM.

E: 6.0 MIN (consult factory for custom length)
