Description

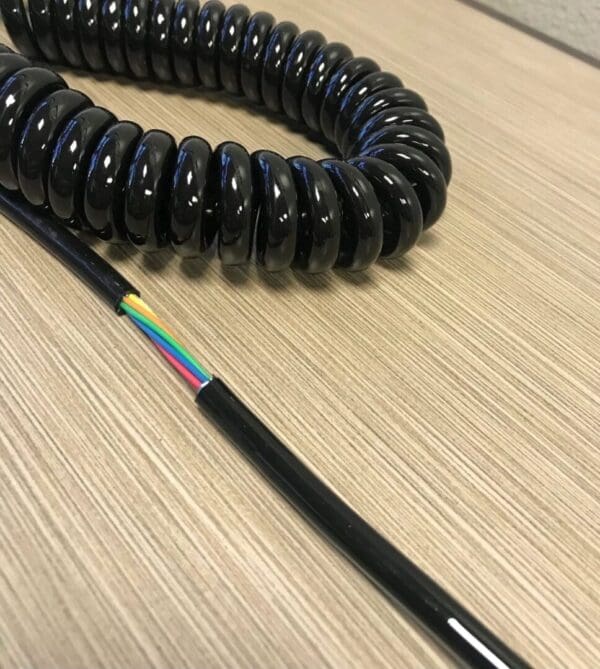

SHIELDED ELECTRONIC COIL CABLE (ECS SERIES)

SHIELDED -OVER-ALL ALUMINUM / MYLAR WRAP + DRAIN WIRE EMI / RFI INTERFERENCE PROTECTION

PART NO. ECS229-XX 22 AWG 9 CONDUCTORS COLOR CODE: BLACK, WHITE, RED, GREEN, YELLOW, BROWN, ORANGE, BLUE, VIOLET

*COLORS SUBJECT TO CHANGE DEPENDING ON AVAILABILITY

SHIELDED SCI-FLEX© JACKET -40C / + 90C

AVAILABLE IN GLOSS BLACK Jacket Options

High Flex Tinned Copper

Insulation: Polypropylene

Shield: Tinned Copper Spiral 85-90% coverage

AMP (at 100v) Rating – 1/2

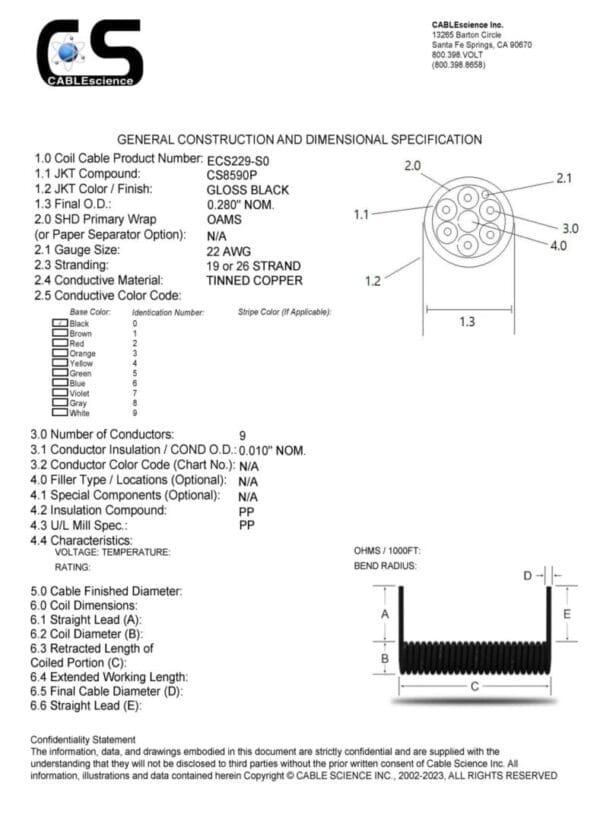

A: 6.0 MIN

B: 0.935″ NOM.

C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)

D: 0.280″ NOM.

E: 6.0 MIN (consult factory for custom length)

Final Cable OD: 0.280″ nominal

CABLEscience offers miniature to large gauge size retractile cords in standard and custom cable configuration.

Prototypes and off the shelf coils.
