ECS2618 – Electronic Coiled Cord 26 Gauge with 18 Conductors – Aluminum Shielded
$35.20 – $123.01
Description

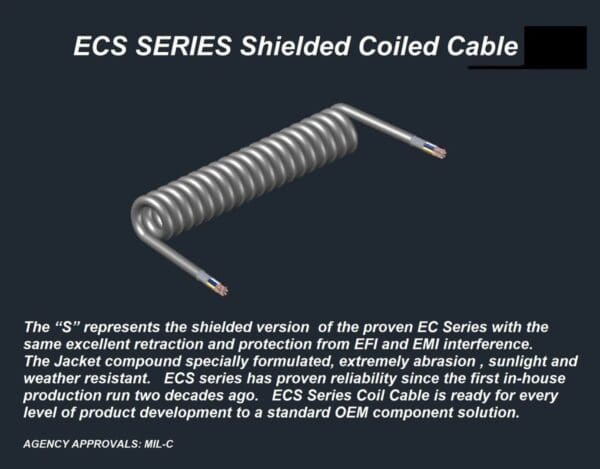

SHIELDED ELECTRONIC COIL CABLE (ECS SERIES)
SHIELDED -OVER-ALL ALUMINUM / MYLAR WRAP + DRAIN WIRE EMI / RFI INTERFERENCE PROTECTION
PART NO. ECS2618-XX 26 AWG 18 CONDUCTORS COLOR CODE: CALL US AT 562.777.VOLT (8658) FOR MORE INFORMATION
*COLORS SUBJECT TO CHANGE DEPENDING ON AVAILABILITY
SHIELDED SCI-FLEX© JACKET -40C / + 90C
AVAILABLE IN GLOSS BLACK Jacket Options
High Flex Tinned Copper
Insulation: Polypropylene
Shield: Tinned Copper Spiral 85-90% coverage
AMP (at 100v) Rating – 1/2

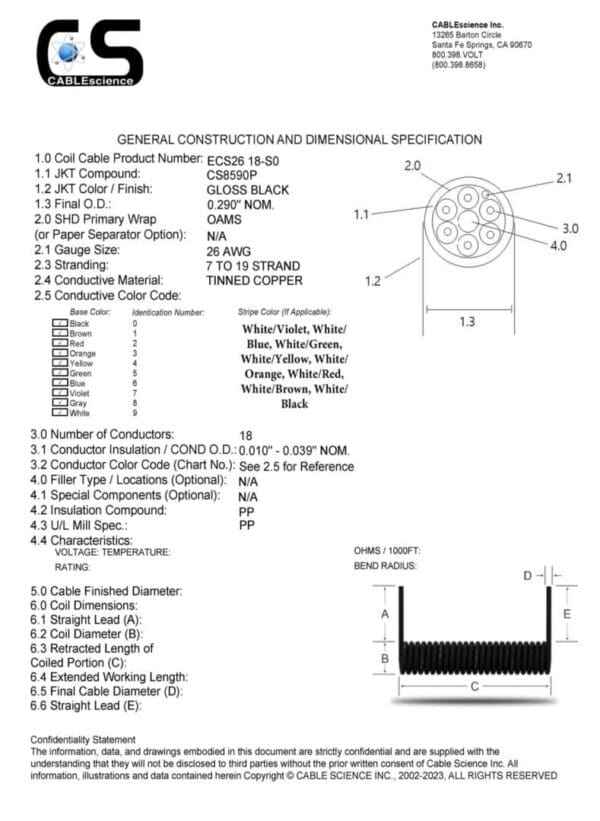

A: 6.0 MIN
B: 1.100″ NOM.
C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)
D: 0.290″ NOM.
E: 6.0 MIN (consult factory for custom length)
Final Cable OD: 0.290” nominal
CABLEscience offers miniature to large gauge size retractile cords in standard and custom cable configuration.
Prototypes and off the shelf coils.
Additional information
| Select Option | ECS2618 – Electronic Coiled Cord 26 Gauge with 18 Conductors – Aluminum Shielded 5 – 6RX15-500X6R 220 45/45 C12, ECS2618 – Electronic Coiled Cord 26 Gauge with 18 Conductors – Aluminum Shielded 10 – 6RX15-500X6R 220 45/45 C24, ECS2618 – Electronic Coiled Cord 26 Gauge with 18 Conductors – Aluminum Shielded 15 – 6RX15-500X6R 220 45/45 C36, ECS2618 – Electronic Coiled Cord 26 Gauge with 18 Conductors – Aluminum Shielded 20 – 6RX15-500X6R 220 45/45 C48, ECS2618 – Electronic Coiled Cord 26 Gauge with 18 Conductors – Aluminum Shielded 25 – 6RX15-500X6R 220 45/45 C60, ECS2618 – Electronic Coiled Cord 26 Gauge with 18 Conductors – Aluminum Shielded 30 – 6RX15-500X6R 220 45/45 C72 |
|---|
