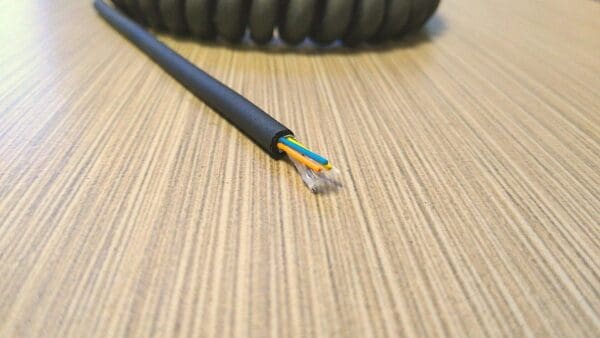

A black cable is sitting on top of a wooden table.

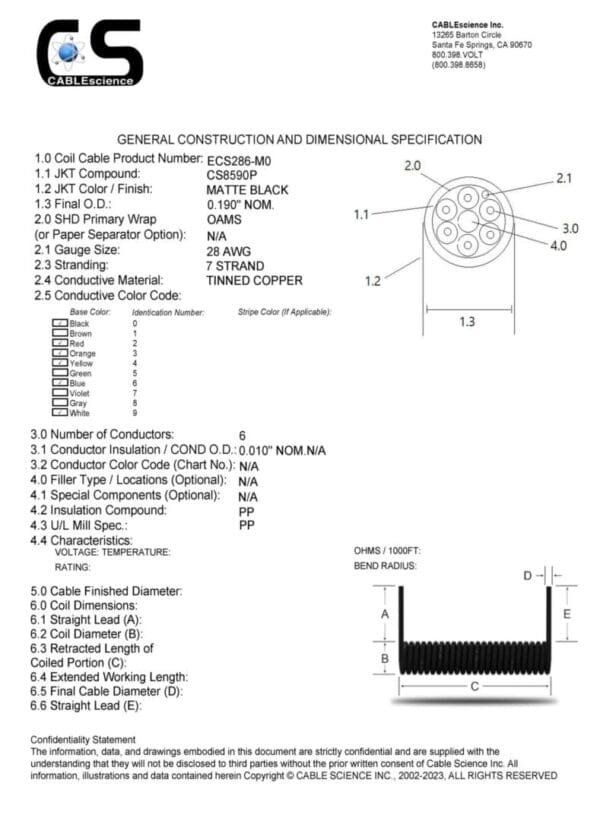

A diagram showing the construction of a cable.
A diagram of a wiring diagram for a cable.
A shielded logo on a green background.
Ecs series shielded coaxial cable.
Sc-flex coil cable should be replaced with PCE164 16 AWG 4 COND. 300V COIL CABLE - MAXIMUM DUTY in the sentence.
Electronic coil cables military medical industrial audio.
The anatomy of custom cable.

ECS286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – Shielded

$16.20 – $167.00

SKU: ECS286 Categories: , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

SHIELDED ELECTRONIC COIL CABLE (ECS SERIES)

SHIELDED -OVER-ALL ALUMINUM / MYLAR WRAP + DRAIN WIRE EMI / RFI INTERFERENCE PROTECTION

PART NO. ECS286-XX 28 AWG 6 CONDUCTORS Wire Color Code: Black, Red, Orange, Yellow, Blue, White

*COLORS SUBJECT TO CHANGE DEPENDING ON AVAILABILITY

SHIELDED SCI-FLEX© JACKET -40C / + 90C

AVAILABLE IN GLOSS and MATTE BLACK Jacket Options

High Flex Tinned Copper

Insulation: Polypropylene

Shield: Tinned Copper Spiral 85-90% coverage

AMP (at 100v) Rating – 1/2

A: 6.0 MIN

B: 0.615 NOM.

C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)

D: 0.195″ NOM.

E: 6.0 MIN (consult factory for custom length)

Final Cable OD: 0.195” nominal

CABLEscience offers miniature to large gauge size retractile cords in standard and custom cable configuration.

Prototypes and off the shelf coils.

Additional information

Select Option

ECS286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – Shielded SO-5 – 6RX15-315X6R 220 45/45 C12, ECS286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – Shielded MO-5 – 6RX15-315X6R 220 45/45 C12, ECS286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – Shielded SO-10 – 6RX29-315X6R 220 45/45 C24, ECS286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – Shielded MO-10 – 6RX29-315X6R 220 45/45 C24, ECS286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – Shielded SO-15 – 6RX44-315X6R 220 45/45 C36, ECS286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – Shielded MO-15 – 6RX44-315X6R 220 45/45 C36, ECS286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – Shielded SO-20 – 6RX59-315X6R 220 45/45 C48, ECS286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – Shielded MO-20 – 6RX59-315X6R 220 45/45 C48, ECS286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – Shielded SO-25 – 6RX72-315X6R 220 45/45 C60, ECS286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – Shielded MO-25 – 6RX72-315X6R 220 45/45 C60, ECS286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – Shielded SO-30 – 6RX86-315X6R 220 45/45 C72, ECS286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – Shielded MO-30 – 6RX86-315X6R 220 45/45 C72, ECS286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – Shielded SO-40, ECS286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – Shielded MO-40, ECS286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – Shielded SO-50, ECS286 – Electronic Coiled Cord 28 Gauge with 6 Conductors – Shielded MO-50
