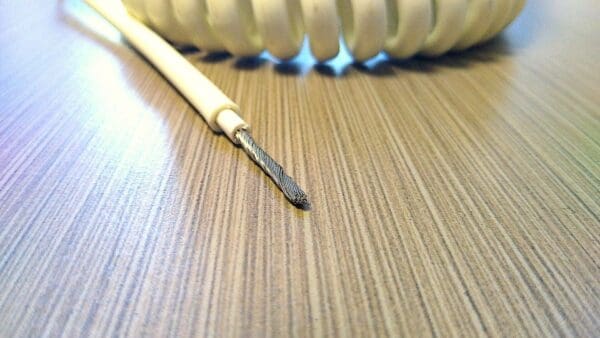

CoilCable.com – PCE SERIES 300V POWER / CONTROL COIL CABLE MAX POWER

PART NO. PCE121-S9-XX

12AWG 1 SINGULAR COPPER CONDUCTOR

Email us @ [email protected] FOR MORE INFORMATION

SCI-FLEX© JACKET Operating Temperature: -40C / + 90C

AVAILABLE IN GLOSS WHITE JACKET OPTIONS

Working Voltage: 10 AMP (at 100v) Rating

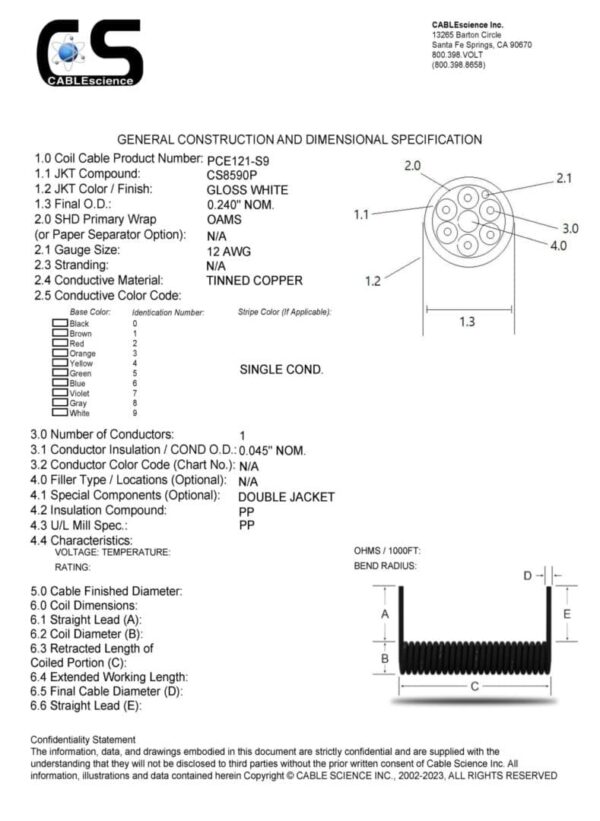

COIL DIAMETER: 2.750″ nominal

A: 6.00″ MIN. LEAD Standard (custom length available)

B: 2.00″ COIL OD

C: 12.00″ RETRACTED = 5 FT EXTENDED (choose extended working length from menu)

Final Cable OD: 0.240”

CoilCable.com offers miniature to large gauge size retractile cords in standard and custom cable configuration.

Prototypes and off the shelf coils.

For the MOST DURABLE AND longest lasting COIL RETENTION, choose these MAXIMUM DUTY PCE Series UL and CSA approved coil cables which have excellent chemical and abrasion qualities and perform well in both high and low temperatures (-58F to +176F) in all environments. Designed for continues extending and retracting in all applications. Automated equipment, Light/towers/generators, RV, Robotics, Stage lighting, Hand tool and portable appliances. COIL RETENTION UP TO 5 YEARS.

SCI-FLEX-P is a Fire Retardant polyurethane, high flex, heavy-duty, oil-resistant, halogen-free, continuous flex multi-conductor drag chain cable designed for use in the machine tool industry, robotics, machine production and drag chains where high flexibility is essential. Suitable for use in permanent flexing and stationary applications under high mechanical stress with free movements in dry, damp or wet areas.

These halogen-free cables offer optimum service life and expanded temperature range commonly found in movable machinery, robotics, automated machine parts, cable tracks and multi-shift operations. Best for applications that require extreme bending stress and smallest bending radius possible with long travel distances.

The rugged PUR jacket offers high abrasion, tear resistance and adhesion-free qualities along with good chemical resistance to coolants and mineral oils. Outdoor installation is permitted due to the weather, ozone and UV-resistant outer jacket.

COIL RETENTION FOR UP TO 5 YEARS. COILED POWER SUPPLY CORD- 15-20 FT EXTENDED LENGTH 16GA 3 CONDUCTORS 300V UL RECOGNIZED AND FLAME RATED INJECTION MOLDED NEMA 5-15P TO TRIPLE OUTLET
