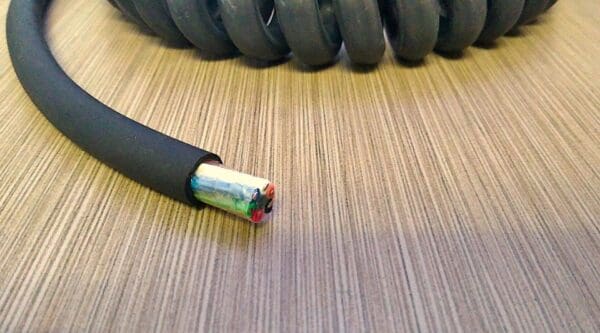

PCE166 – Power Coiled Cord 16 Gauge with 6 Conductors – No Shield
$50.64 – $219.85
Description
For the MOST DURABLE AND longest lasting COIL RETENTION, choose these MAXIMUM DUTY PCE Series UL and CSA approved coil cables which have excellent chemical and abrasion qualities and perform well in both high and low temperatures (-58F to +176F) in all environments.
Designed with a double Outer Jacket, for continuous extending and retracting in all applications. Automated equipment, Light/towers/generators, RV, Robotics, Stage lighting, Hand tool and portable appliances.
COIL RETENTION UP TO 5 YEARS.
-Operating Temperature: -58F to +176F -Working Voltage: 8 AMP (at 100v) Rating -Gauge size: 16 AWG

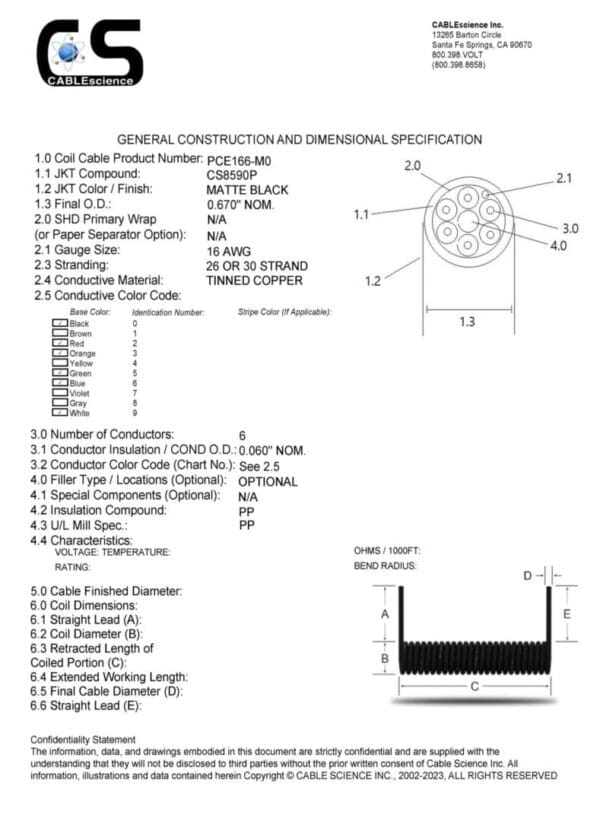

A: 12″ (304.8 mm)
B: 2.150″ (54.61 mm)
C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)
D: 0.670″ (17.1958 mm) Gloss Yellow Jacket Available upon request.
Contact US at Info@CABLEscience.com for additional information
Additional information
| Select Option | PCE166 – Power Coiled Cord 16 Gauge with 6 Conductors – No Shield 5 – 6RX15-700X6R 220 45/60 C12, PCE166 – Power Coiled Cord 16 Gauge with 6 Conductors – No Shield 10 – 6RX29-700X6R 220 45/60 C24, PCE166 – Power Coiled Cord 16 Gauge with 6 Conductors – No Shield 15 – 6RX44-700X6R 220 45/60 C36, PCE166 – Power Coiled Cord 16 Gauge with 6 Conductors – No Shield 20 – 6RX59-700X6R 220 45/60 C48, PCE166 – Power Coiled Cord 16 Gauge with 6 Conductors – No Shield 25 – 6RX72-700X6R 220 45/60 C60, PCE166 – Power Coiled Cord 16 Gauge with 6 Conductors – No Shield 30 – 6RX86-700X6R 220 45/60 C72 |
|---|
