Description

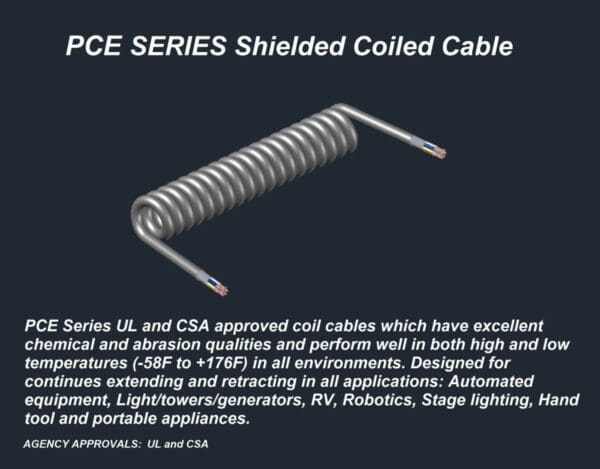

For the MOST DURABLE AND longest lasting COIL RETENTION, choose these MAXIMUM DUTY PCE Series UL and CSA approved coil cables which have excellent chemical and abrasion qualities and perform well in both high and low temperatures (-58F to +176F) in all environments.

Operating Temperature: -58F to +176F -Working Voltage: 9 AMP (at 100v) Rating

Gauge size: 16 AWG -Conductors: 8 COLOR CODE: BLACK, RED, ORANGE, YELLOW, GREEN, BLUE, VIOLET, WHITE

A: 12″ (304.8 mm)

B: 1.585″ (40.259 mm)

C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)

D: 0.430″ (10.922 mm)

COIL RETENTION UP TO 5 YEARS.

Designed for continues extending and retracting in all applications. Automated equipment, Light/towers/generators, RV, Robotics, Stage lighting, Hand tool and portable appliances.
