Description

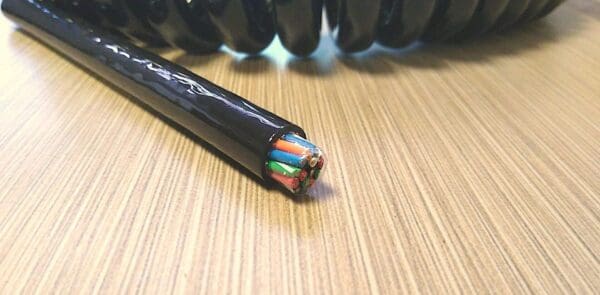

POWER ELECTRONIC COIL CABLE (PCE SERIES) 300V POWER / CONTROL COIL CABLE MAX POWER

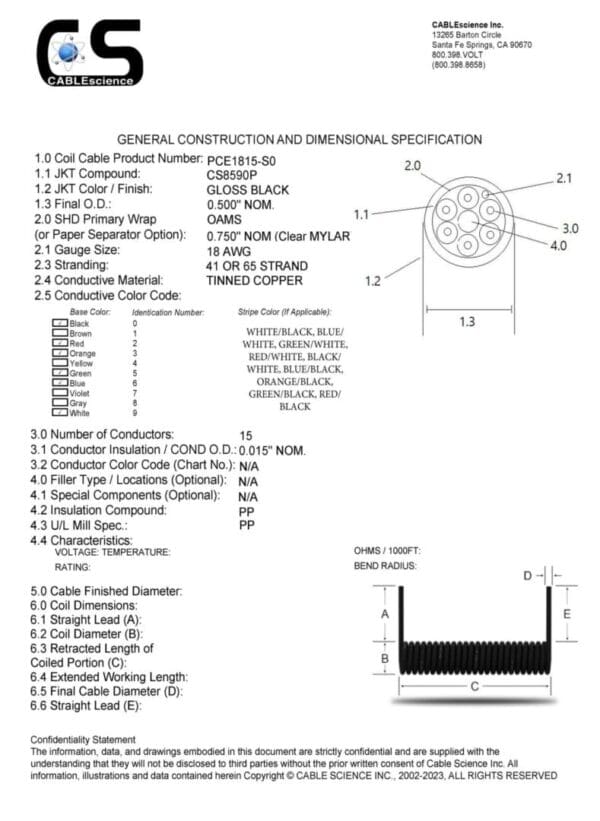

PCE SERIES  PART NO. PCE1815-XX 18 AWG 15 CONDUCTOR

SCI-FLEX JACKET Operating Temperature: -58F to +176F AVAILABLE IN BLACK Jacket

A: 12″ (304.8 mm)

B: 1.630″ (41.402 mm)

C: 12.0″ RETRACTED = 5 FT EXTENDED (choose extended working length from menu)

D: 0.460″ (11.684 mm)

E: 6.0 MIN (consult factory for custom length)

Working Voltage: 4 AMP (at 100v) Rating

CABLEscience offers miniature to large gauge size retractile cords in standard and custom cable configuration. Prototypes and off the shelf coils.

For the MOST DURABLE AND longest lasting COIL RETENTION, choose these MAXIMUM DUTY PCE Series UL and CSA approved coil cables which have excellent chemical and abrasion qualities and perform well in both high and low temperatures (-58F to +176F) in all environments. Designed for continues extending and retracting in all applications. Automated equipment, Light/towers/generators, RV, Robotics, Stage lighting, Hand tool and portable appliances. COIL RETENTION FOR UP TO 5 YEARS.
