Description
PCO 300V/600V High Flex / UL Flame Rated (PFR SERIES )
300V/600V UL/Canadian Recognized UL / CSA AWM 20234 600 V 80°C

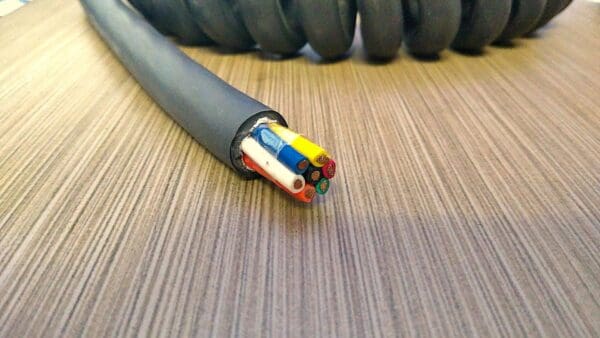

PART NO. PCO147-XX 14 AWG 7 CONDUCTORS Color Code: Black, White, Green, Red, Blue, Yellow, Orange
*COLORS SUBJECT TO CHANGE DEPENDING ON AVAILABILITY
NON-SHIELDED SCI-FLEX© JACKET -58F (-50°C) to +176F (80°C)
AVAILABLE IN MATTE BLACK Jacket Options
Working Voltage: 10 AMP (at 100v) Rating

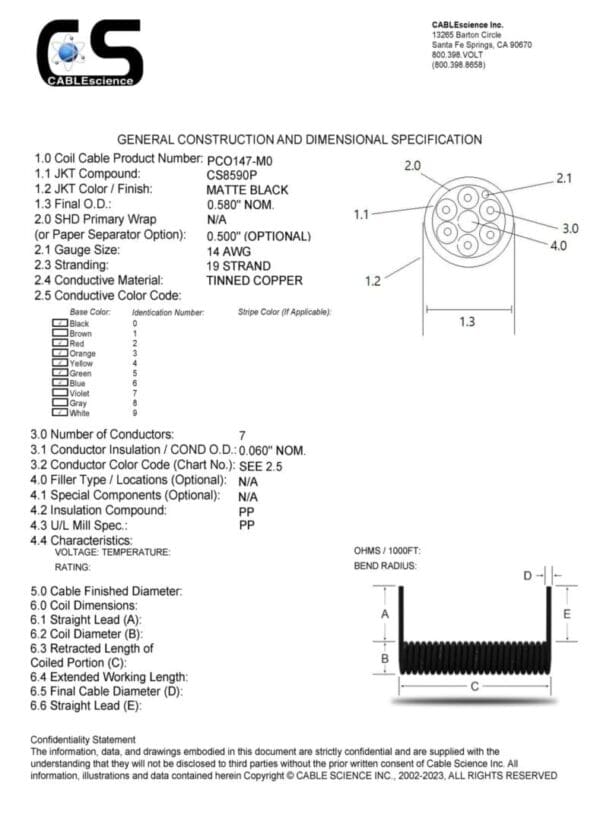

A: 12″ (304.8 mm)
B: 1.700″ (29.21 mm)
C: 12″ (304.8 mm) RETRACTED = 5 FT (1.524 mm)EXTENDED (choose extended working length from menu)
D: 0.580″ (14.7 mm)
E: 6.0″ (152.4 mm) MIN (consult factory for custom length)
Final Cable OD: 0.580″ +/- .012” (14.4272mm – 15.0368mm) nominal
CABLEscience offers miniature to large gauge size retractile cords in standard and custom cable configuration.
Prototypes and off the shelf coils.
*SUBJECT TO CHANGE BASED ON AVAILABILITY SCI-FLEX-P is a Fire Retardant polyurethane, high flex, heavy-duty, oil-resistant, halogen-free, continuous flex multi-conductor drag chain cable designed for use in the machine tool industry, robotics, machine production and drag chains where high flexibility is essential. Suitable for use in permanent flexing and stationary applications under high mechanical stress with free movements in dry, damp or wet areas. These halogen-free cables offer optimum service life and expanded temperature range commonly found in movable machinery, robotics, automated machine parts, cable tracks and multi-shift operations. Best for applications that require extreme bending stress and smallest bending radius possible with long travel distances. The rugged PUR jacket offers high abrasion, tear resistance and adhesion-free qualities along with good chemical resistance to coolants and mineral oils. Outdoor installation is permitted due to the weather, ozone and UV-resistant outer jacket. For the MOST DURABLE AND longest lasting COIL RETENTION, choose these MAXIMUM DUTY PCO Series UL and CSA approved coil cables which have excellent chemical and abrasion qualities and perform well in both high and low temperatures (-58F (-50°C) to +176F (80°C) ) in all environments. Designed for continues extending and retracting in all applications. Automated equipment, Light/towers/generators, RV, Robotics, Stage lighting, Hand tool and portable appliances.
COIL RETENTION FOR UP TO 5 YEARS.
