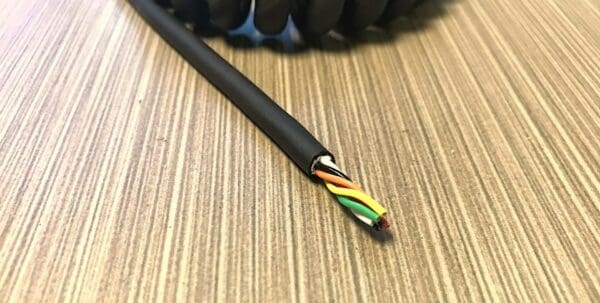

EC246 - Electronic Coiled Cord 24 Gauge with 6 Conductors - No Shield is a black cable with colored wires on top of it.
Ec series non-shielded.

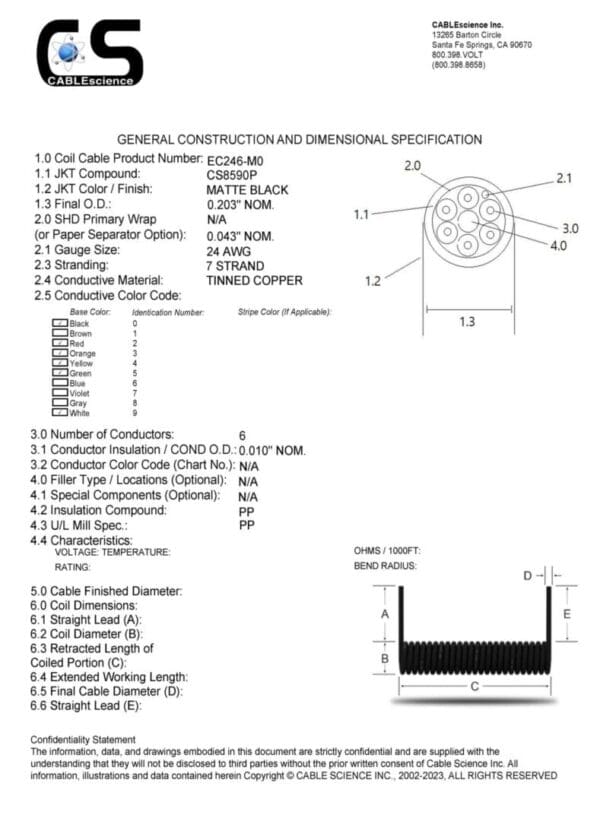

A diagram showing the construction of EC246 - Electronic Coiled Cord 24 Gauge with 6 Conductors - No Shield.
A diagram showing the construction of EC246 - Electronic Coiled Cord 24 Gauge with 6 Conductors - No Shield.
Ec series shielded cable.
Sc-flex coil cable should be replaced with PCE164 16 AWG 4 COND. 300V COIL CABLE - MAXIMUM DUTY in the sentence.
Electronic coil cables military medical industrial audio.
A diagram showing the parts of a PCO127 - Power Coiled Cord 12 Gauge with 7 Conductors - No Shield - 600 Volts electrical cable.

EC246 – Electronic Coiled Cord 24 Gauge with 6 Conductors – No Shield

$24.00 – $84.81

SKU: ECS246 Categories: , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

NON-SHIELDED ELECTRONIC COIL CABLE (EC SERIES)

CoilCable.com offers miniature to large gauge size retractile cords in standard and custom cable configuration. Prototypes and off the shelf coils.

EC246 24 AWG High Flex Tinned Copper Insulation: Polypropylene Shield: Tinned Copper Spiral 85-90% coverage Jacket: SCI-flex© Gloss Black -40C + 90C



PART NO. ECS246-XX 24 AWG 6 CONDUCTORS COLOR CODE: NON-REPEATING SCI-FLEX JACKET -40C / + 90C BLACK, WHITE, RED, GREEN, YELLOW, ORANGE

A: 6.0″ MIN

B: 0.750″ NOM.

C: 12.0″ RETRACTED = 5 FT EXTENDED (choose extended working length from menu)

D: 0.203″ NOM.

E: 6.0″ MIN (consult factory for custom length)

Final Cable OD: 0.203” nominal

Additional information

Select Option

EC246 – Electronic Coiled Cord 24 Gauge with 6 Conductors – No Shield M0 – 6RX15-315X6R 220 45/30 C12, EC246 – Electronic Coiled Cord 24 Gauge with 6 Conductors – No Shield M0 – 6RX15-315X6R 220 45/30 C24, EC246 – Electronic Coiled Cord 24 Gauge with 6 Conductors – No Shield M0 – 6RX15-315X6R 220 45/30 C36, EC246 – Electronic Coiled Cord 24 Gauge with 6 Conductors – No Shield M0 – 6RX15-315X6R 220 45/30 C48, EC246 – Electronic Coiled Cord 24 Gauge with 6 Conductors – No Shield M0 – 6RX15-315X6R 220 45/30 C60, EC246 – Electronic Coiled Cord 24 Gauge with 6 Conductors – No Shield M0 – 6RX15-315X6R 220 45/30 C72
