EC247 – Electronic Coiled Cord 24 Gauge with 7 Conductors – Non-Shielded

$29.00 – $112.50

SKU: EC247 Categories: , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

CABLEscience offers miniature to large gauge size retractile cords in standard and custom cable configuration.

Prototypes and off the shelf coils.

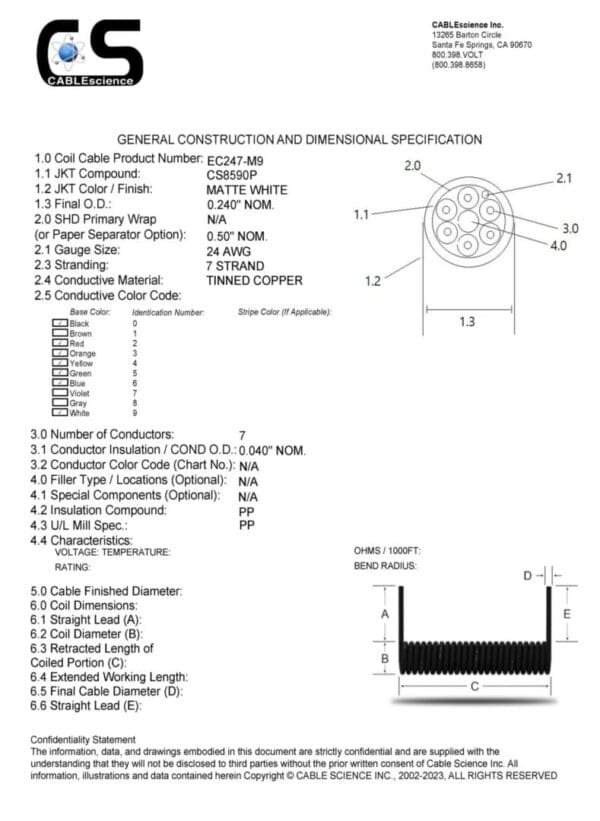

ELECTRONIC COIL CABLE (EC SERIES)

PART NO. EC247-XX 24 AWG 7 CONDUCTORS COLOR CODE: Black, White, Red, Orange, Yellow, Green, Blue

*COLORS SUBJECT TO CHANGE DEPENDING ON AVAILABILITY

NON-SHIELDED SCI-FLEX© JACKET -40C / + 90C

High Flex Tinned Copper

Insulation: Polypropylene

AMP (at 100v) Rating – 1/2

A: 6.0 MIN

B: 0.740 NOM.

C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)

D: 0.210 NOM.

E: 6.0 MIN (consult factory for custom length)

Additional information

Select Option

EC247 – Electronic Coiled Cord 24 Gauge with 7 Conductors – No Shield S0-5-6RX15-315X6R 220 45/45 C12, EC247 – Electronic Coiled Cord 24 Gauge with 7 Conductors – No Shield M9-5-6RX15-315X6R 220 45/45 C12, EC247 – Electronic Coiled Cord 24 Gauge with 7 Conductors – No Shield S0-10 – 6RX29-315X6R 220 45/45 C24, EC247 – Electronic Coiled Cord 24 Gauge with 7 Conductors – No Shield M9-10 – 6RX29-315X6R 220 45/45 C24, EC247 – Electronic Coiled Cord 24 Gauge with 7 Conductors – No Shield S0-15 – 6RX44-315X6R 220 45/45 C36, EC247 – Electronic Coiled Cord 24 Gauge with 7 Conductors – No Shield M9-15 – 6RX44-315X6R 220 45/45 C36, EC247 – Electronic Coiled Cord 24 Gauge with 7 Conductors – No Shield S0-20 – 6RX59-315X6R 220 45/45 C48, EC247 – Electronic Coiled Cord 24 Gauge with 7 Conductors – No Shield M9-20 – 6RX59-315X6R 220 45/45 C48, EC247 – Electronic Coiled Cord 24 Gauge with 7 Conductors – No Shield S0-25 – 6RX72-315X6R 220 45/45 C60, EC247 – Electronic Coiled Cord 24 Gauge with 7 Conductors – No Shield M9-25 – 6RX72-315X6R 220 45/45 C60, EC247 – Electronic Coiled Cord 24 Gauge with 7 Conductors – No Shield S0-30 – 6RX86-315X6R 220 45/45 C72, EC247 – Electronic Coiled Cord 24 Gauge with 7 Conductors – No Shield M9-30 – 6RX86-315X6R 220 45/45 C72
