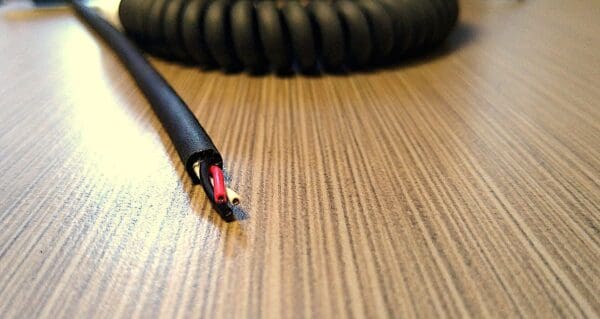

EC283 - Electronic Coiled Cord 28 Gauge with 3 Conductors - No Shield on a wooden table.
Sc-flex coil cable.
Electronic coil cables military medical industrial audio.
The anatomy of custom cable.
Ec series shielded cable.
A diagram showing the dimensions of the elbap - elbap - elbap.
EC283 - Electronic Coiled Cord 28 Gauge with 3 Conductors - No Shield on a wooden table.

EC283 – Electronic Coiled Cord 28 Gauge with 3 Conductors – No Shield

$14.00 – $58.00

SKU: EC283 Categories: , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

CABLEscience offers miniature to large gauge size retractile cords in standard and custom cable configuration.

Prototypes and off the shelf coils.

ELECTRONIC COIL CABLE (EC SERIES)

PART NO. EC283-XX 28 AWG 3 CONDUCTORS 1/2 AMP (at 100v) Rating COLOR CODE: BLACK, WHITE, RED

*COLORS SUBJECT TO CHANGE DEPENDING ON AVAILABILITY

NON-SHIELDED SCI-FLEX© JACKET -40C / + 90C

High Flex Tinned Copper

Insulation: Polypropylene

AMP (at 100v) Rating – 1/2

A: 6.0 MIN

B: 0.910″ NOM.

C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)

D: 0.265″ NOM.

E: 6.0 MIN (please consult factory for custom length)
