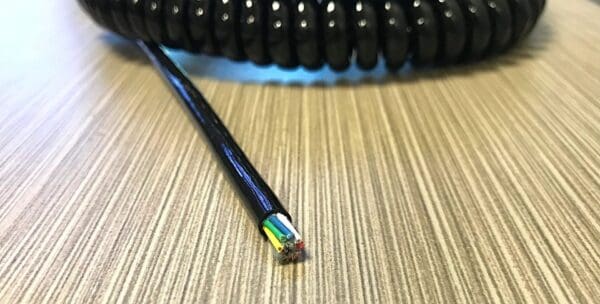

EC248 - An electronic coiled cord 24 gauge with 8 conductors - no shield on top of a table.

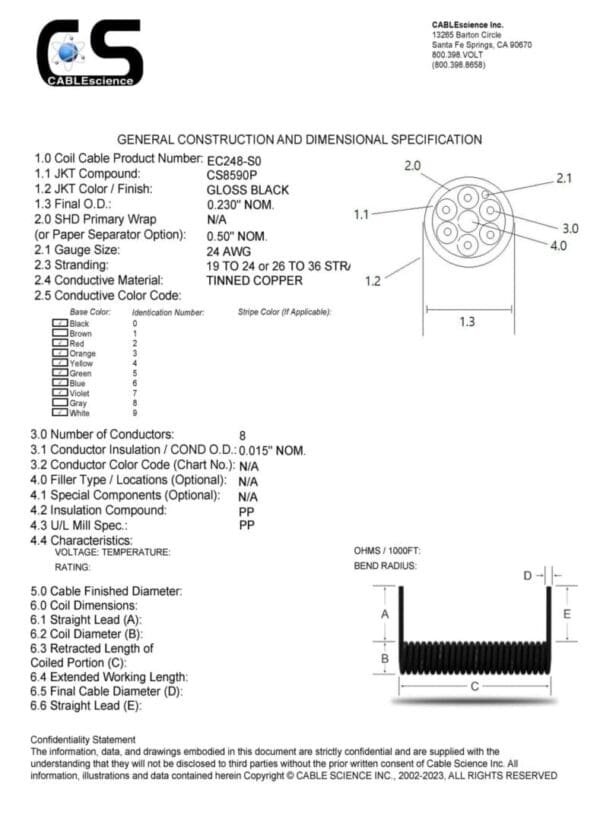

A diagram showing the construction of an EC248 - Electronic Coiled Cord 24 Gauge with 8 Conductors - No Shield.
Ec series non-shielded.
Ec series shielded cable.
Sc-flex coil cable should be replaced with PCE164 16 AWG 4 COND. 300V COIL CABLE - MAXIMUM DUTY in the sentence.
Electronic coil cables military medical industrial audio.
The anatomy of custom cable.

EC248 – Electronic Coiled Cord 24 Gauge with 8 Conductors – No Shield

$30.00 – $109.50

SKU: EC248 Categories: , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

CABLEscience offers miniature to large gauge size retractile cords in standard and custom cable configuration.

Prototypes and off the shelf coils.

ELECTRONIC COIL CABLE (EC SERIES)

PART NO. EC248-XX 24AWG 8 CONDUCTORS COLOR CODE: BLACK, YELLOW, GREEN, BLUE, WHITE, RED, ORANGE, BROWN

*COLORS SUBJECT TO CHANGE DEPENDING ON AVAILABILITY

SCI-FLEX (c) JACKET -40C / + 90C

High Flex Tinned Copper

Insulation: Polypropylene

AMP (at 100v) Rating – 1/2

A: 6.0 MIN

B: 0.735 NOM.

C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)

D: 0.210 NOM.

E: 6.0 MIN (please consult factory for custom length)

Additional information

Select Option

EC248 – Electronic Coiled Cord 24 Gauge with 8 Conductors – No Shield 5 – 6RX15-315X6R 220 45/45 C12, EC248 – Electronic Coiled Cord 24 Gauge with 8 Conductors – No Shield 10 – 6RX29-315X6R 220 45/45 C24, EC248 – Electronic Coiled Cord 24 Gauge with 8 Conductors – No Shield 15 – 6RX44-315X6R 220 45/45 C36, EC248 – Electronic Coiled Cord 24 Gauge with 8 Conductors – No Shield 20 – 6RX59-315X6R 220 45/45 C48, EC248 – Electronic Coiled Cord 24 Gauge with 8 Conductors – No Shield 25 – 6RX72-315X6R 220 45/45 C60, EC248 – Electronic Coiled Cord 24 Gauge with 8 Conductors – No Shield 30 – 6RX86-315X6R 220 45/45 C72
