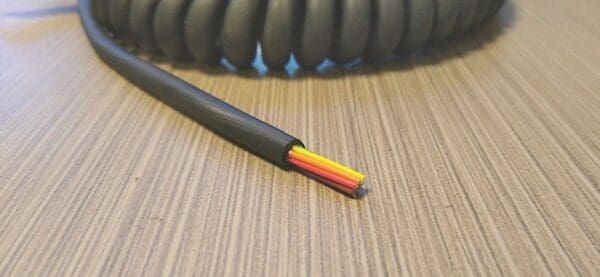

A black and yellow EC266 - Electronic Coiled Cord 26 Gauge with 6 Conductors - No Shield on a table.
Ec series non-shielded.
A diagram of a EC266 - Electronic Coiled Cord 26 Gauge with 6 Conductors - No Shield for a cable.
Ec series shielded cable.
Sc-flex coil cable should be replaced with PCE164 16 AWG 4 COND. 300V COIL CABLE - MAXIMUM DUTY in the sentence.
Electronic coil cables military medical industrial audio.
The anatomy of custom cable.

EC266 – Electronic Coiled Cord 26 Gauge with 6 Conductors – No Shield

$18.50 – $110.15

SKU: EC266 Categories: , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

CoilCable.com offers miniature to large gauge size retractile cords in standard and custom cable configuration.

Prototypes and off the shelf coils.

ELECTRONIC COIL CABLE (EC SERIES)

PART NO. EC266-XX 26 AWG 6 CONDUCTORS COLOR CODE: BLACK, WHITE, RED, GREEN, BROWN, YELLOW

*COLORS SUBJECT TO CHANGE DEPENDING ON AVAILABILITY

NON-SHIELDED SCI-FLEX© JACKET -40C / + 90C

High Flex Tinned Copper

Insulation: Polypropylene

AMP (at 100v) Rating – 1/2

A: 6.0 MIN

B: 0.690″ NOM.

C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)

D: 0.185″ NOM.

E: 6.0 MIN (please consult factory for custom length)



Additional information

Select Option

EC266 – Electronic Coiled Cord 26 Gauge with 6 Conductors – No Shield S0 – 6RX15-315X6R 220 45/45 C12, EC266 – Electronic Coiled Cord 26 Gauge with 6 Conductors – No Shield S0 – 6RX15-315X6R 220 45/45 C24, EC266 – Electronic Coiled Cord 26 Gauge with 6 Conductors – No Shield S0 – 6RX15-315X6R 220 45/45 C36, EC266 – Electronic Coiled Cord 26 Gauge with 6 Conductors – No Shield S0 – 6RX15-315X6R 220 45/45 C48, EC266 – Electronic Coiled Cord 26 Gauge with 6 Conductors – No Shield S0 – 6RX15-315X6R 220 45/45 C60, EC266 – Electronic Coiled Cord 26 Gauge with 6 Conductors – No Shield S0 – 6RX15-315X6R 220 45/45 C72
