Description

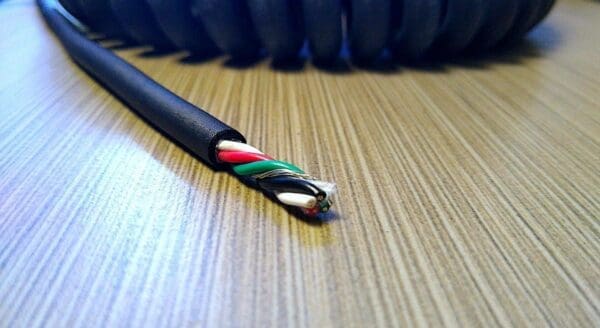

SHIELDED ELECTRONIC COIL CABLE (ECS SERIES)
SHIELDED -OVER-ALL ALUMINUM / MYLAR WRAP + DRAIN WIRE EMI / RFI INTERFERENCE PROTECTION
PART NO. ECS224-XX 22 AWG 4 CONDUCTORS COLOR CODE: BLACK, WHITE, RED, GREEN
*COLORS SUBJECT TO CHANGE DEPENDING ON AVAILABILITY
SHIELDED SCI-FLEX© JACKET -40C / + 90C
AVAILABLE IN GLOSS BLACK Jacket Options
High Flex Tinned Copper
Insulation: Polypropylene
Shield: Tinned Copper Spiral 85-90% coverage
Working Voltage: 4.9 AMP (at 100v)

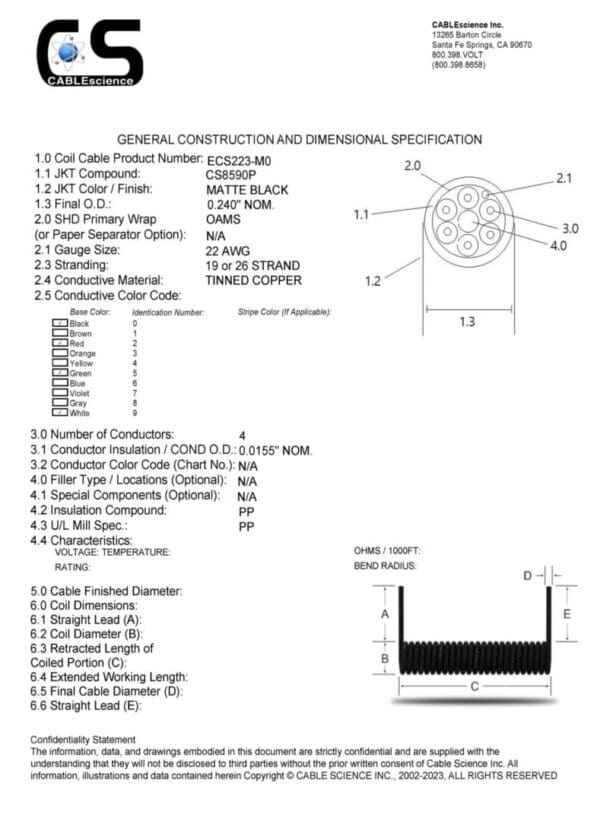

A: 6.0 MIN
B: 0.900 NOM.
C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)
D: 0.245” NOM.
E: 6.0 MIN (consult factory for custom length)
Final Cable OD: 0.245” nominal
CABLEscience offers miniature to large gauge size retractile cords in standard and custom cable configuration.
Prototypes and off the shelf coils.
