Description – Fiber Optic Cables

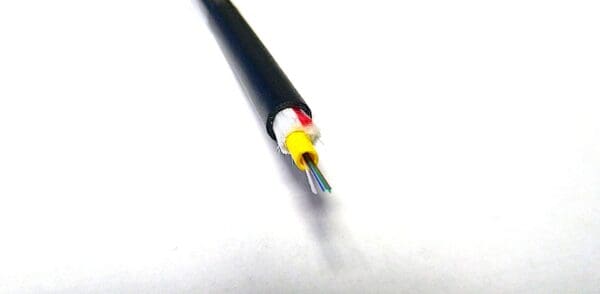

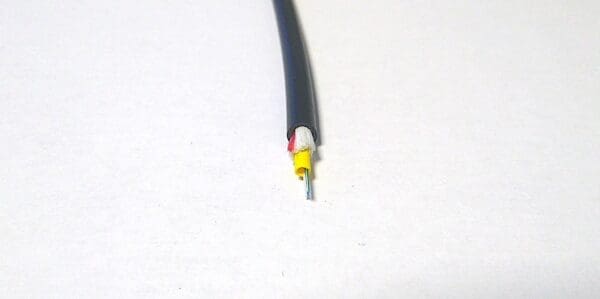

FiOps310-6F – Black
Sold By The Foot or Continuous Bulk Spool
Manufacturer : Panduit Corp
Series : Opti-Core®
Style : Multiple Fibers
Type : Singlemode
Core Diameter:
Cladding Diameter : 125µm (0.00492126″ in. Nom / 0.125mm)
Buffered, Loose Tube or Ribbon : Loose Tube – 250um (0.00984252″ in. Nom. / 0.25mm)
Flammability Rating (Physical Properties) : Riser
Armor or Non-Armor : Non-Armored
Jacket (Insulation) Diameter : 0.240″ in. Nom. (6.10mm)
Tensile Strength : 44.9743 lbs. (20.4kg)
Jacket Color : Black
Ratings : OFNP (Optical Fiber Non-conductive Plenum)
Fiber Count : 6 Fibers
Operating Temperature : -4°F ~ 158°F (-20°C ~ 70°C)
Bend Radius : 2.3″ in. Nom. (58.42mm)
Environment : Indoor/Outdoor
Fiber-optic cable is made up of a few to hundreds of optical fibers in it’s plastic sheath casing. Also known as optical cables or optical fiber cables, these cables have the ability to transmit data signals in the form of light and travel hundreds of miles significantly faster than those used in traditional electrical cables and power lines. Fiber-optic cables are used for high-performance data communication over both short and long distances – primarily to provide internet, computer network, telephone, and cable television services. Fiber’s design is simply better for data transmission over long distances than cable’s electrical signals. Fiber cables can also carry much more bandwidth than similarly sized copper cables and are immune to interference because there are no electrical signals in use. Offers Various Styles and Types of Fiber Optic Cables for many types of uses.
Email us at [email protected] for additional information and specifications
