Description

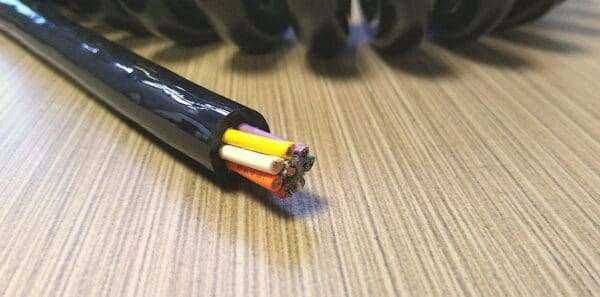

For the MOST DURABLE AND longest lasting COIL RETENTION, choose these MAXIMUM DUTY PCE Series UL and CSA approved coil cables which have excellent chemical and abrasion qualities and perform well in both high and low temperatures (-58F to +176F) in all environments.

Designed for continues extending and retracting in all applications.

Automated equipment, Light/towers/generators, RV, Robotics, Stage lighting, Hand tool and portable appliances.

COIL RETENTION UP TO 5 YEARS.

-Operating Temperature: -58F to +176F

-Working Voltage: 10 AMP (at 100v) Rating

-Gauge size: 14 AWG

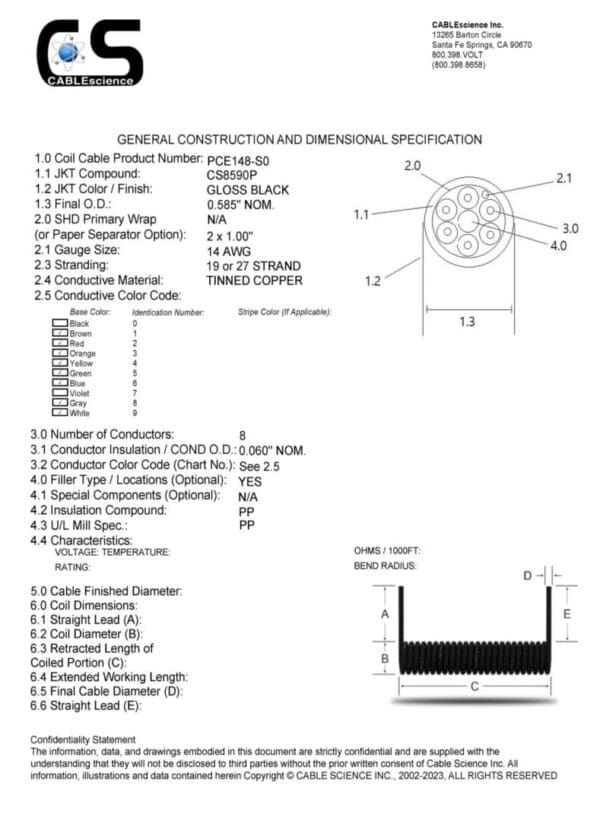

A: 12″ (304.8 mm)

B: 2.280″ (57.912 mm)

C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)

D: 0.585″ +/- .012 (14.859mm)
