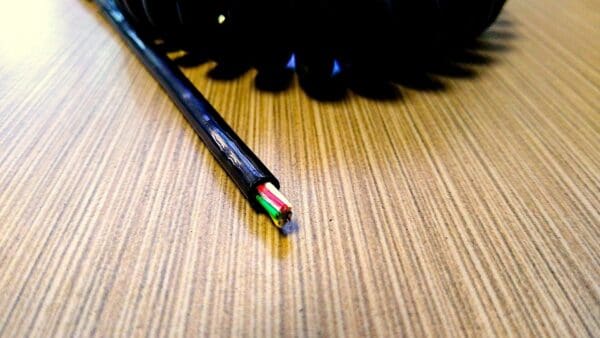

ECS245 - Electronic Coiled Cord 24 Gauge with 5 Conductors - Aluminum Shielded on a wooden table.

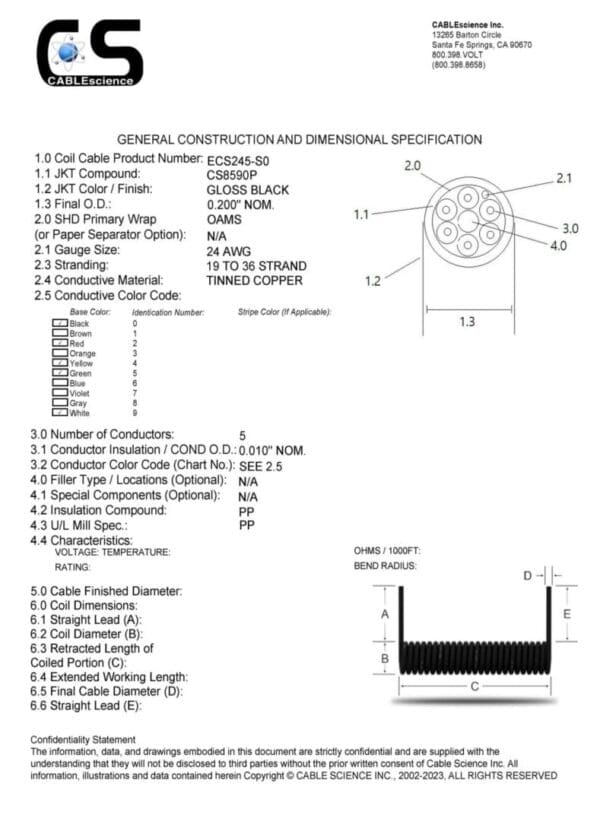

A diagram showing the construction of ECS245 - Electronic Coiled Cord 24 Gauge with 5 Conductors - Aluminum Shielded.
A shielded logo on a green background.
Ecs series shielded coaxial cable.
Sc-flex coil cable should be replaced with PCE164 16 AWG 4 COND. 300V COIL CABLE - MAXIMUM DUTY in the sentence.
Electronic coil cables military medical industrial audio.
The anatomy of custom cable.

ECS245 – Electronic Coiled Cord 24 Gauge with 5 Conductors – Aluminum Shielded

$24.00 – $84.81

SKU: ECS245 Categories: , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

SHIELDED ELECTRONIC COIL CABLE (ECS SERIES)

SHIELDED -OVER-ALL ALUMINUM / MYLAR WRAP + DRAIN WIRE EMI / RFI INTERFERENCE PROTECTION

PART NO. ECS245-XX 24 AWG 5 CONDUCTORS COLOR CODE: BLACK, WHITE, RED, GREEN, VIOLET

*COLORS SUBJECT TO CHANGE DEPENDING ON AVAILABILITY

SHIELDED SCI-FLEX© JACKET -40C / + 90C

AVAILABLE IN GLOSS BLACK Jacket Options

High Flex Tinned Copper

Insulation: Polypropylene

Shield: Tinned Copper Spiral 85-90% coverage

AMP (at 100v) Rating – 1/2

A: 6.0 MIN

B: 0.720″ NOM.

C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)

D: 0.200″ NOM.

E: 6.0 MIN (consult factory for custom length)

Final Cable OD: 0.200” nominal

CABLEscience offers miniature to large gauge size retractile cords in standard and custom cable configuration.

Prototypes and off the shelf coils.

Additional information

Select Option

ECS245 – Electronic Coiled Cord 24 Gauge with 5 Conductors – Aluminum Shielded 5 – 6RX15-315X6R 220 45/45 C12, ECS245 – Electronic Coiled Cord 24 Gauge with 5 Conductors – Aluminum Shielded 10 – 6RX15-315X6R 220 45/45 C24, ECS245 – Electronic Coiled Cord 24 Gauge with 5 Conductors – Aluminum Shielded 15 – 6RX15-315X6R 220 45/45 C36, ECS245 – Electronic Coiled Cord 24 Gauge with 5 Conductors – Aluminum Shielded 20 – 6RX15-315X6R 220 45/45 C48, ECS245 – Electronic Coiled Cord 24 Gauge with 5 Conductors – Aluminum Shielded 25 – 6RX15-315X6R 220 45/45 C60, ECS245 – Electronic Coiled Cord 24 Gauge with 5 Conductors – Aluminum Shielded 30 – 6RX15-315X6R 220 45/45 C72
