Description

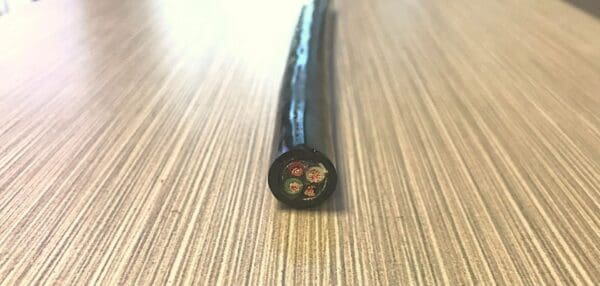

PCE SERIES 300V POWER/CONTROL COIL CABLE -MAX DUTY (PCE SERIES) PART NO. PCE184-XX 18 AWG 4 CONDUCTORS
COLOR CODE: BLACK, WHITE, RED, GREEN *COLORS SUBJECT TO CHANGE DEPENDING ON AVAILABILITY SCI-FLEX JACKET -40C / + 90C AVAILABLE IN GLOSS BLACK, MATTE BLACK OR GLOSS SAFETY YELLOW
A: 12″ (304.8 mm)
B: 1.620″ (41.148 mm)
C: 12.0 RETRACTED = 5 FT EXTENDED (choose extended working length from menu)
D: 0.460″ (11.684 mm)
E: 6.0 MIN (please consult factory for custom length)
CABLEscience offers miniature to large gauge size retractile cords in standard and custom cable configuration.
Prototypes and off the shelf coils.
For the MOST DURABLE AND longest lasting COIL RETENTION, choose these MAXIMUM DUTY PCE Series UL and CSA approved coil cables which have excellent chemical and abrasion qualities and perform well in both high and low temperatures (-58F to +176F) in all environments. Designed for continues extending and retracting in all applications. Automated equipment, Light/towers/generators, RV, Robotics, Stage lighting, Hand tool and portable appliances.
COIL RETENTION UP TO 5 YEARS.
